| Engine and gearbox removed for rebuild by Carl Whitney and Chris
Tchorznicki . Thanks to Gary Anderson for sending me this
photo.
Members of the Lotus 14 discussion group can see more of Gary's photos
of EB1821 on Yahoo
.
Rolling chassis loaded up for transport to Randall
Fehr , who will oversee the restoration.
|
 |
|
|
 |

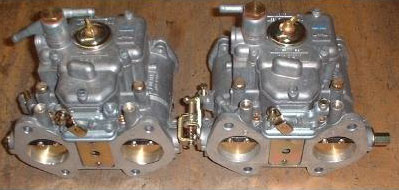

Original SU carbs were full of crud. It might be
interesting
to rebuild them and I won't be throwing them away, but I decided to
replace
them with a pair of Weber 40 DCOEs. This was a common
contemporary
upgrade available from the factory and FIA-homologated by Lotus.
I bought this pair of unused matching carbs from an Alfa mechanic today. |
|
|
| Searching for Derrington cast intake manifolds...
Update: Found at Dave
Bean
Engineering (thanks Tom!).
The photographs at right and below show the parts as they
arrived.
I assume these are replicas of the original Derringtons. Does
anyone
know the manufacturer or the significance of the code "MR 8000"?
|
  |
|
|
  |
On the whole, the casting looks to be of a high
quality. Just
a few minor burrs around the flanges to clean up. Note that the
holes
for the studs on the port side are not pre-drilled.
From my (limited) past experience, I am inclined against
polishing the
channels. Other opinions? Since I don't have the block on hand, I
can't yet say how closely the manifold openings match the ports.
|
|
|

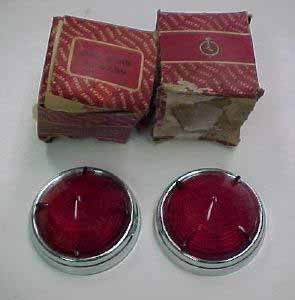

| These lenses were destined for someone's MG Magnette, but
they should
fit nicely on the tail of 1821. |
 |
|
|
 |

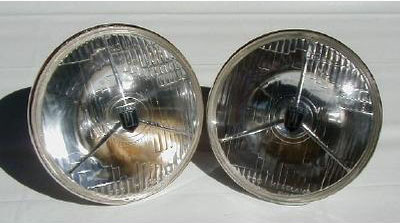

Picked up this set of new Lucas PL700 headlamps on
eBay. PL700s
replaced the standard sealed-beam headlamps on Special Equipment
Elites.
Still need to find proper rims, but these are just too beautiful for
words.
PL700s also graced a number of the Elite's contemporary rivals,
including
the Jaguar XKE. See the Dime
Bank Garage for more on life with Lucas headlamps. |
|
|
